Product Details:
|
| Technics: | Wood-Plastic Composite Flooring,Laminate Flooring | Material: | Stainless Steel,plastic,Wood + HDPE +Additives,ASA+PVC |
|---|---|---|---|
| Type: | Engineered Flooring,Plain Roof Tiles,plastic Pedestal | Color: | Black |
| Product Name: | Wood Plastic Composite Decking,Wood-Plastic Composite Flooring,High Quality Cheap Clips Plastic Card Easy Install Wpc Accessories | Usage: | Outdoor,Skirting Board For House,office,Outdoor WPC Decking |
| Highlight: | 200A PT ZT elbow joint,15KV PT ZT elbow joint,elbow joint Insulator |
||

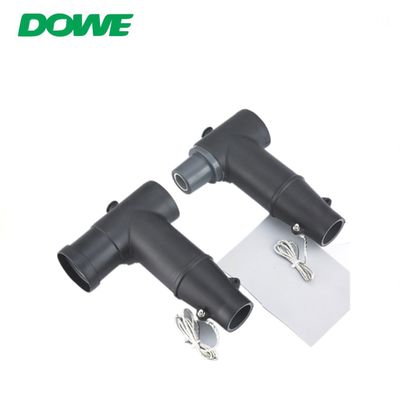

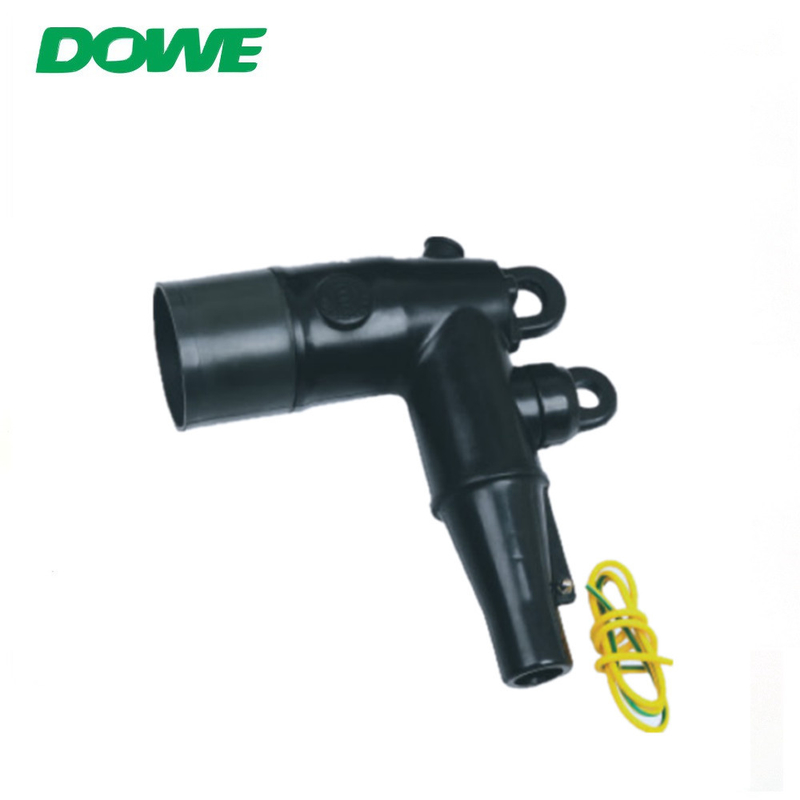

DOWE American cable accessories series 15KV/24KV 200A YN ZT PT 15KV/200A PT ZT elbow joint
15KV 200A plug-in cable connector is a fully insulated, fully sealed plug-in terminal with electrical touch. It is widely used in outdoor distribution transformers, American box transformers and other electrical equipment connection. Single-pass(or double pass) bushing connector and load conversion connector installed on the 200A output side of T-II cable head, 200A busbar and American box transformer .The test point can be equipped with a live display to query the live status of the device and also meet the nuclear phase requirements of the line.
It uses high quality EPDM insulation rubber, and the conductive rod connector has arc extinguishing material, so it can be operated in a charged state, but in can’t cut off the short-circuit current; it can be used as a load switch to interrupt 200A.
Suitable for 15KV cross-linked polyethylene cables with a cross section of 35mm²~150mm².
