15KV 24KV 200A Single Pass Bushing Joint Insulator Accessories

DOWE American cable accessories series 15KV/24KV 200A YN DTT-24KV/200A Single-pass bushing joint

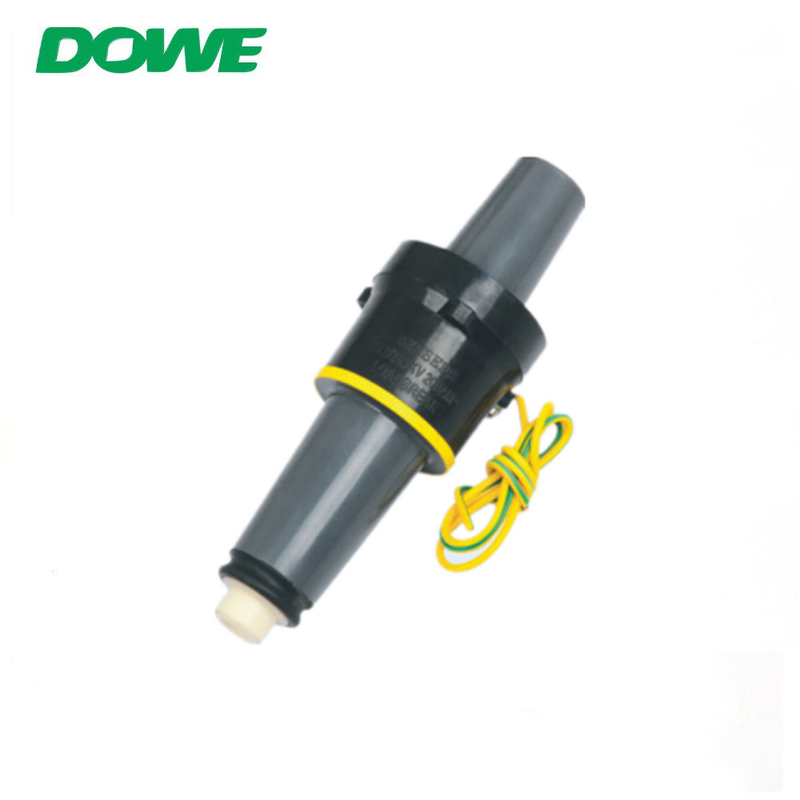

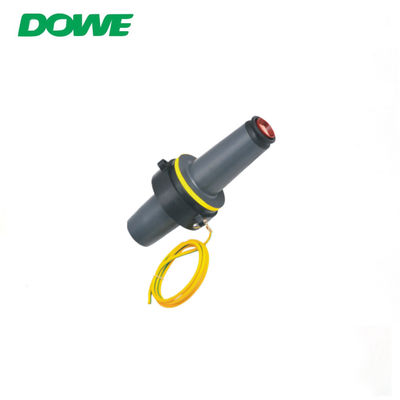

15kV 200A single- pass bushing joint, which provides the same function as the integrated bushing joint with the bushing seat. It is the most basic port of the pluggable connection system with the elbow joint. It is mainly used in American box transformers, High-voltage electrical connections for outdoor ring mains. The use of the single- -pass bushing joint with the bushing seat makes field intallationln and replacement possible.

The inner hexagon of the single-pass bushing makes isalltion easier, and with the use of istallation tools, the bushing can be tihtly mounted to the bushing seat to avoid any potential damage.

The yellow positioning ring of the product can directly rflct whether the elbow joint is nstolledl in place.

It uses high-qualily EPDM insulation rubber, and the advanced design inside the single- pass bushing ensures that the arc can be extingushed normally when disconnected from the elbow joint.
