Product Details:
|
| Product Name: | D Insulator | Model: | D2525 |
|---|---|---|---|
| Height: | 25mm | Diameter: | 25mm |
| Screw: | 500g Freely Supplied | Material: | DMC/SMC |
| Insert: | Brass/steel | Torque Stength: | >18N/m |
| Customized: | OEM | Certificate: | CE,ROHS,REACH |
| Highlight: | Electrical Busbar Insulator Low Voltage,Electrical Busbar Insulator BMC SMC,Low Voltage BMC Insulator |
||

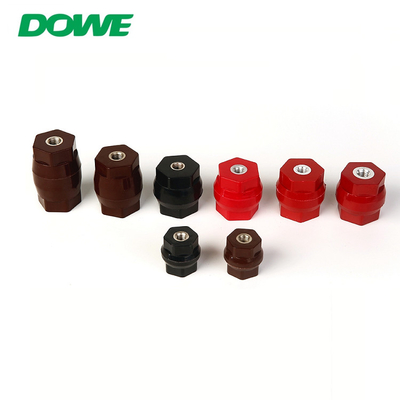

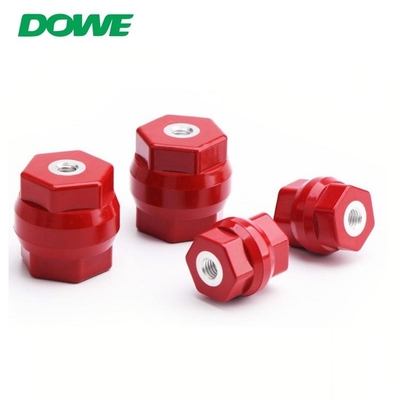

Drum busbar insulator is made of DMC,used for low voltage application(660V-4500V),such as distribution box,switchgear,inverter and
green power and so on.
CE,SGS,ROHS certificate for drum insulator.
Material / Materiale:
-Thread Insert / Inserto Filettato :
Steel With Zn Coating
Brass
-DMC (Doug Moulding Compound)
-SMC (Sheet Moulding Compound)
Colour / Colore :Red
Working Temperature / Temperatura d’esercizio : 40℃～140℃
Flammability / Autoestinguenza:V0
All dimensions are in mm /Tutte le quote sono in mm
Please confirm screw when order busbar insulator.Accepting OEM.
