Product Details:
|
| Product Name: | CJ/CT Insulator | Model: | CJ4-30 |
|---|---|---|---|
| Height: | 100mm | Length: | 230mm |
| Screw: | 500g Freely Supplied | Material: | DMC/SMC |
| Insert: | Brass/steel | Torque Stength: | >18N/m |
| Customized: | OEM | Certificate: | CE,ROHS,REACH |

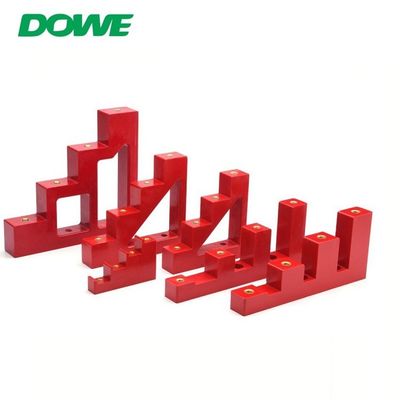

Step Busbar Support CJ4--30
CT/CJ busbar support insulator is mainly used for support the busbar with different height in one equipment.
Popular used in distribution box,switchgear,inverter and green power.
CE,SGS,ROHS certificate for CT/CJ insulator
Material / Materiale:
-Thread Insert / Inserto Filettato :
Steel With Zn Coating
Brass
-DMC (Doug Moulding Compound)
-SMC (Sheet Moulding Compound)
Colour / Colore :Red
Working Temperature / Temperatura d’esercizio : 40℃～140℃
Flammability / Autoestinguenza:V0
All dimensions are in mm /Tutte le quote sono in mm
Length:230mm
Height:100mm
Step:4
Contact Person: Mrs. Huang
Tel: 0086-13634205622
Fax: 86-577-61716150
