Product Details:
|
| Product Name: | EL Busbar Insulator | Model: | EL130 |
|---|---|---|---|
| Height: | 35mm | Width: | 35mm |
| Screw: | 500g Freely Supplied | Material: | DMC/SMC |
| Insert: | Brass/steel | Torque Stength: | >18N/m |
| Customized: | OEM/ | Certificate: | CE,ROHS,REACH |
| Highlight: | epoxy standoff insulator 35mm,Standoff Insulator Electronics 35mm,Dmc Smc Busbar Support |
||

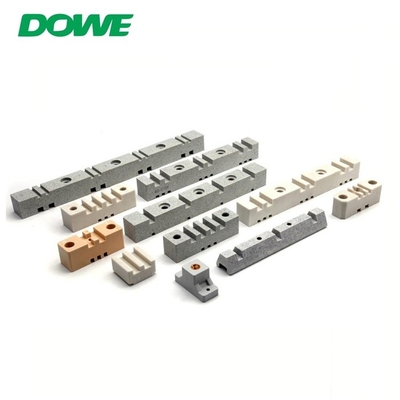

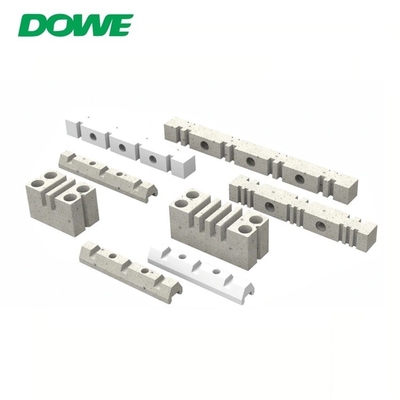

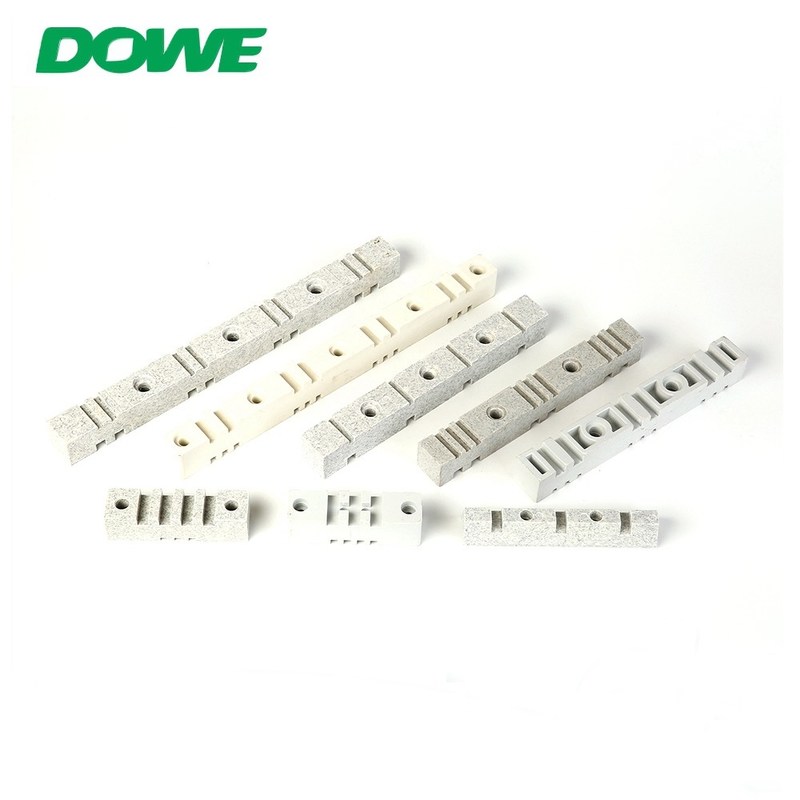

EL Busbar support is made of DMC/SMC to support busbar,such as single phase, three phase and four phase.Thickness of busbar is from 0mm-15mm,popular used for electric application,such as distribution box,switchgear,inverter and green power and so on.
CE,SGS,ROHS certificate for busbar support.
Material / Materiale:
-DMC (Doug Moulding Compound)
-SMC (Sheet Moulding Compound)
Colour / Colore :Marbel/Grey/White/Customized
Working Temperature / Temperatura d’esercizio : 40℃～140℃
Flammability / Autoestinguenza:V0
All dimensions are in mm /Tutte le quote sono in mm
Please confirm screw when order busbar insulator support.Accepting OEM.
Length:210mm
Width:34mm
Height:28/31mm
Phase:3phase
