Product Details:
|
| Product Name: | EN Insulator | Model: | EN25 |
|---|---|---|---|
| Height: | 25mm | A/F: | 26mm |
| Screw: | 500g Freely Supplied | Material: | DMC/SMC |
| Insert: | Brass/steel | Torque Stength: | >18N/m |
| Customized: | OEM/ | Certificate: | CE,ROHS,REACH |
| Highlight: | Low Voltage Standoff Bus Bar Insulator,Standoff Bus Bar Insulator EN25,electrical bus bar insulator EN25 |
||

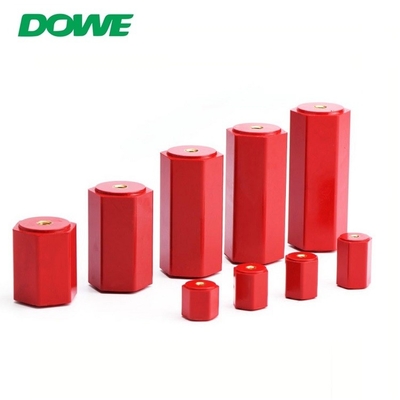

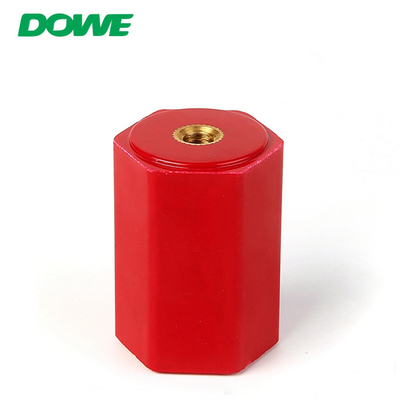

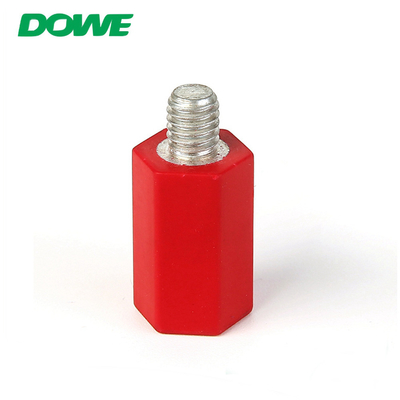

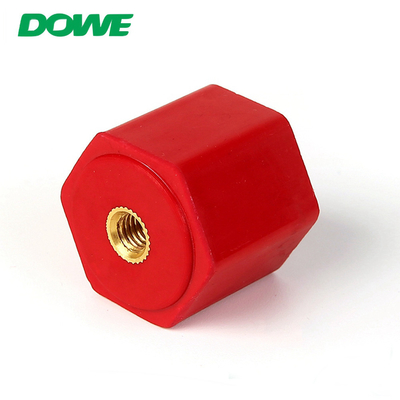

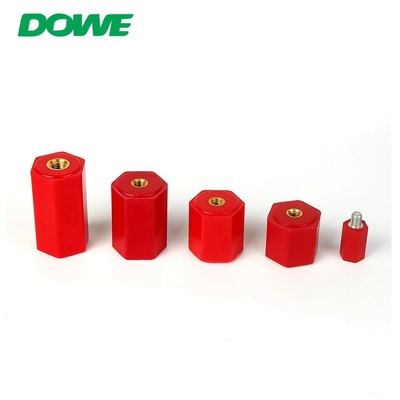

EN busbar insulator is made of DMC,used for low voltage application(660V-4500V),such as distribution box,switchgear,inverter and
green power and so on.
CE,SGS,ROHS certificate for drum insulator.
Material / Materiale:
-Thread Insert / Inserto Filettato :
Steel With Zn Coating
Brass
-DMC (Doug Moulding Compound)
-SMC (Sheet Moulding Compound)
Colour / Colore :Red
Working Temperature / Temperatura d’esercizio : 40℃～140℃
Flammability / Autoestinguenza:V0
All dimensions are in mm /Tutte le quote sono in mm
Please confirm screw when order busbar insulator.Accepting OEM.
A/F:26mm/45mm
H:25mm-100mm,customized is acceptable.
