Product Details:
|
| Type: | H3A | Material: | Plastic |
|---|---|---|---|
| Voltage: | 380V | Current: | 3A |
| Length: | 92 | Width: | 15.8 |
| Height: | 12.8 | ||
| Highlight: | Plastic X3 Connectors,12WAY 16A Wire Terminal,380v Electrical Terminal Connector |
||
Features:
|

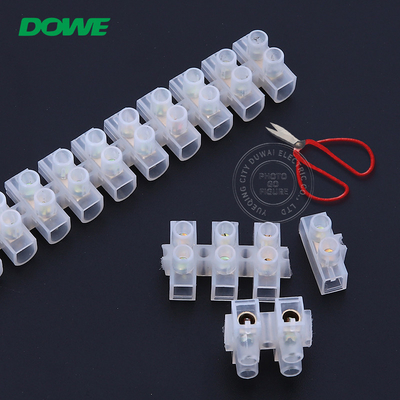

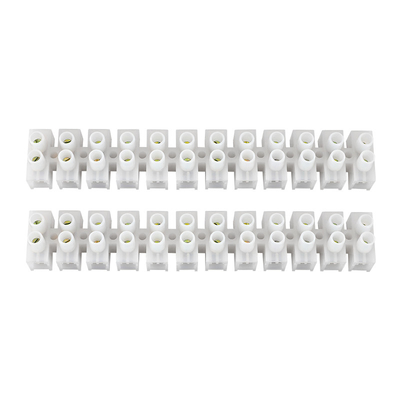

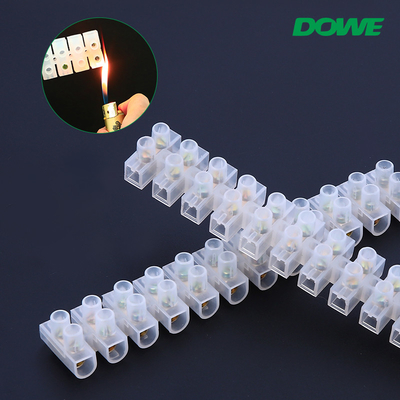

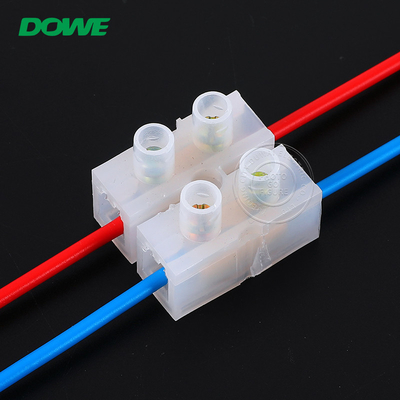

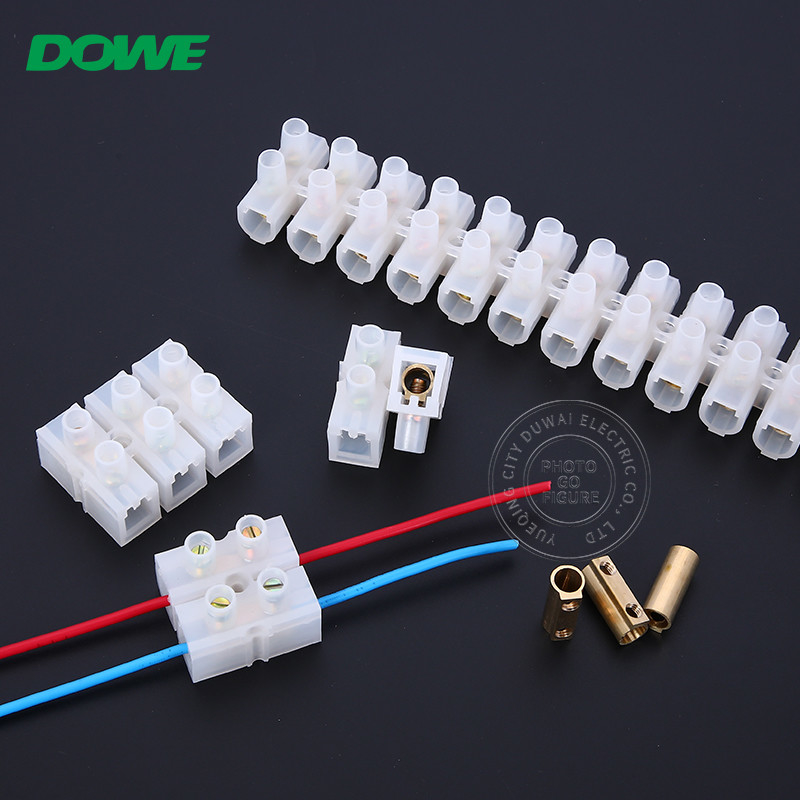

H U W fw x3 connector terminal block:
1. H,U(W) types
3.The sizes:
4mm2,6mm2,10mm2,12mm2,14mm2,16mm2,20mm2,25mm2,35mm2,40mm2
4.Current: 3A, 6A, 10A, 15A, 20A, 30A, 60A, 80A, 100A, 150A
5.Colours: milk-white, black,transparent
6. Standard: IEC

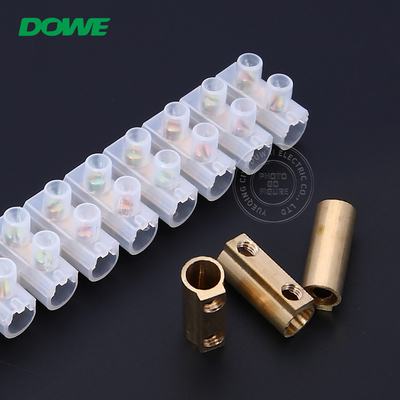

7.Brass insert and Steel screw
8.Voltage: 250- 400V
9.Current : 3A - 150A
10.Cable wire : 2.5mm2 - 45mm2
11.Working Temperature : - 40oC to 110oC |
| H TYPE | |||||
| Type | Length | Width | Height | mm² | Voltage |
| H3A | 92 | 15.8 | 12.8 | 4 | 380V |
| H5A | 109 | 15.4 | 13 | 5 | 380V |
| H6A | 111 | 17.4 | 13.3 | 6 | 380V |
| H10A(S) | 117 | 19 | 14 | 10 | 380V |
| H10A | 128 | 19.7 | 14.5 | 10 | 380V |
| H15A(S) | 127 | 20.2 | 16 | 12 | 380V |
| H15A | 133 | 22.6 | 18 | 12 | 380V |
| H20A | 137 | 22.6 | 18.5 | 14 | 380V |
| H30A | 163 | 23.6 | 20.5 | 16 | 380V |
| H60A | 192 | 30.2 | 25 | 25 | 380V |
| H80A | 204 | 36.7 | 28.3 | 30 | 380V |
| H100A(S) | 226 | 35.1 | 28.8 | 35 | 380V |
| H100A | 232 | 39 | 33 | 35 | 380V |
| H150A(S) | 257 | 40.1 | 33.1 | 40 | 380V |
| H150A | 256 | 43.4 | 37.5 | 40 | 380V |
| U TYPE | |||||
| Type | Length | Width | Height | mm² | Voltage |
| U3A | 91 | 15.5 | 12.5 | 4 | 380V |
| U5A | 109 | 15.4 | 13 | 5 | 380V |
| U6A | 110 | 18.3 | 13.6 | 6 | 380V |
| U10A | 129 | 19.6 | 14.7 | 10 | 380V |
| U15A(S) | 128 | 20.1 | 16 | 12 | 380V |
| U15A | 129 | 21.2 | 17.2 | 12 | 380V |
| U20A(S) | 131 | 21.1 | 15.2 | 14 | 380V |
| U20A | 135 | 22.1 | 17.2 | 14 | 380V |
| U30A(S) | 163 | 22.7 | 15.8 | 16 | 380V |
| U30A(M) | 166 | 23.8 | 18.3 | 16 | 380V |
| U30A | 171 | 26 | 19.5 | 20 | 380V |
| U60A(S) | 184 | 27.5 | 22.8 | 25 | 380V |
| U60A | 191 | 30.4 | 24.6 | 25 | 380V |
| U80A(S) | 198 | 33.6 | 26.5 | 30 | 380V |
| U80A | 203 | 35.8 | 28.9 | 30 | 380V |
| U100A | 229 | 37.8 | 29.4 | 35 | 380V |
| U150A | 256 | 44.2 | 31.5 | 40 | 380V |
